Introduction
Monitor and observe transmitted waveforms on your P3. The P3 Transmit Monitor option for the P3 adds a new operating dimension covering CW, SSB and Digital modes.
Overview
OVERVIEW
Unlike other panadapters, the P3 TX Monitor option provides clear transmitted waveforms in multiple views.
- Monitor the rise and fall time of a CW signal
- Monitor the voice envelope of an SSB signal.
- Adjust the voice signal for maximum punch without overdriving.
Use with any Transceiver
- 1.8 MHz through 54 MHz at power levels up to 200 Watts
- 1.8 MHz through 54 MHz at up to 2000 Watts
- 144 MHz through 450 MHz at up to 200 Watts
Options
OPTIONS
| Please specify one coupler at purchase | Description |
DCHF-200 1.8-54 MHz, 0.1- 200W | Select this coupler if to monitor the HF bands, up through 6 Meters at up to 200 watts. If you do not have a linear amplifier, this is the optimal choice. Accuracy is good down to about 2.0 watts. |
DCHF-2000 1.8-54 MHz, 1- 2000W | Select this coupler if you have a linear amplifier over 200 watts for the HF bands, up through 6 Meters. |
DCV/U-200 144-450 MHz, .1- 200W | Select this coupler if you will be transmitting in the 2 Meter through 440 Mhz regions at up to 200 watts. |
FAQ
FAQ
Q: Can the P3TXMON option be installed on any P3?

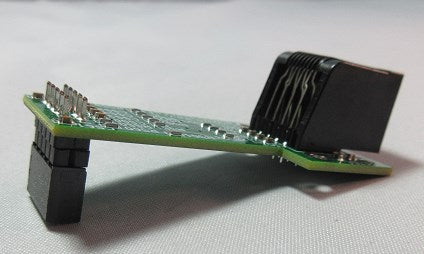

A: Yes. Any P3 can have the P3TXMON option installed at any time. No modifications are needed to circuits or the cabinet to do so, too. The Transmit Monitor is a single board that plugs into the existing I/O board inside the P3. Only a few basic hand tools are needed to perform the installation. No soldering or wiring is required.
Q: May I install the P3TXMON option without the P3SVGA option installed?
A: Yes. The P3TXMON option can be installed separately from the P3SVGA option and at any time.
