Introduction
Compact Power Supply for Elecraft Radios systems including the K3S and KX3/KXPA100 combo. The small foot print and ruggedness provides one all-purpose power supply to work in the small shack or for vacation or 2nd house use. It allows the operator to purchase a single power supply to support expanding the radios with peripherals and accessories.
Overview
OVERVIEW

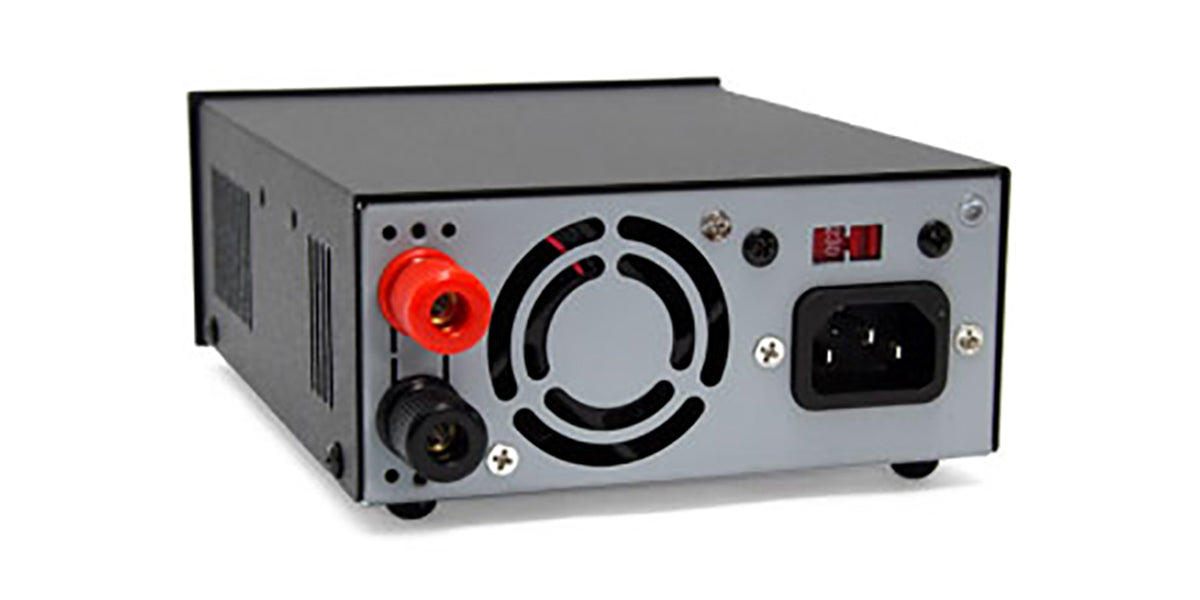

The SS30DV is designed to supply 25 Amps continuous (up to 5 minutes) and 30 Amps surge at 14.1 VDC. It is the perfect companion supply for the Elecraft K3, K2/100, KX3 with KXPA100 and most other rigs. Cabling can be connected to either the rear, 5-way binding posts or the dual front Powerpole connectors.
The SS30DV supports all the peripherals for a K-Line (K3S, P3, KAT500) or the KX-Line (KX3/KX2, KXPA100 and PX3).
Specs
SPECS
Electrical specifications:
- Input Range: 100-120 VAC or 200-240 VAC, 50/60Hz (Switchable)
- Output Voltage: 14.1 VDC fixed
- Output Amperage: 25 continuous (up to 5 minutes), 30 surge
- Internal Protection: Thermal, over current
- Internal Input Fuse: 6.3 Amps at 115 VAC
- Ripple Peak-to-Peak Max. <100mVpp
- Noise Peak-to-Peak Max. <100mVpp
- Operating temperature rating: 0 – 50 °C
- Storage temperature: -20 – 85 °C
Physical dimensions and materials:
- Shipping Weight: 4.0 lbs.
- Overall Dimensions: 6.1 x 5 x 2.5 in (154mm long, 127mm wide, 63mm tall)
- Fan: Quiet internal cooling fan
- Machined metal case front bezel
Accessories
ACCESSORIES
- Power Cable, 3 ft, Assembled with APP Conn. 2.1mm connector at the other end. Use this cable to connect these peripherals to the SS30DV: KX3, PX3, KX2, K1, K2, KX1, KAT500, W1, W2
- Power Cable, 5 ft, Assembled with Anderson Power Pole connectors on one end and #12 circular ring lugs at other end. This cable is included with all new K3Ss and KXPA100s
Reviews
REVIEWS
- SS30DV Power Supply
FAQ
FAQ
Q: Why did Elecraft select the Power Werx SS30DV power supply to sell?
A: Elecraft found that the Power Werx SS30DV worked for power their demo booths at Hamfests for well over 3 years. We're confident that it meets our criteria for a low-noise, small sized power supply suitable for very small shacks yet can support an entire K-Line or KX-Line of products, as our customers expand their systems.
Q: Does the fan run all the time?
A: Yes, but its speed will vary on the transmitting load. When receiving, the fan cannot be heard.
Q: Do I have to adjust the output voltage on the SS30DV to operate with my Elecraft gear?
A: No. The SS30DV is factory-adjusted to provide input voltage for Elecraft radios to meet specified RF output specs, 13.8 volts DC.
Q: I'd like to order the SS30DV but I live outside the US. Can I order cables with the proper AC plug for my region? will it work with 220/240 volt outlets?
A: Yes. Please order the proper AC plug/cable from the list of cables available for the KPA500. You can find these on the The SS30DV can be switched to operate world wide in 120 volt or 220/240 volt AC power distribution systems.
