Introduction
Overview
OVERVIEW

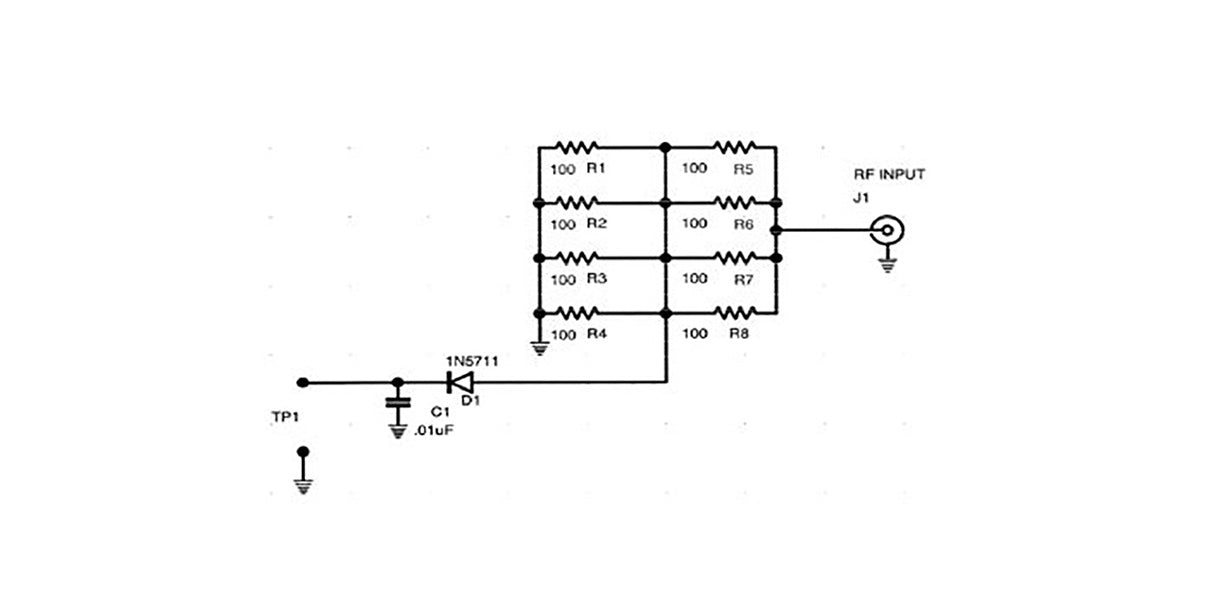

The DL1 dummy load can handle a full 20 watts (continuous) and more intermittently. Its SWR is less than 1.3:1 through 225 MHz. It includes an integral RF detector for use with a voltmeter, allowing you to accurately calculate transmit power.
Specs
SPECS
- Power Rating: 20 watts maximum; 50% duty cycle.
- Bandwidth: Input VSWR less than 1.1, 0 to 30 MHz, 1.2, 0 to 144 MHz, 1.3, 0 to 225 MHz
- Power Measurement Accuracy: 10%, typical, 1 watt to 20 watts
Accessories
ACCESSORIES
- - adapter for PL259 cable connections
Reviews
REVIEWS
FAQ
FAQ
Q: Is the DL1 suitable to run the calibration procedures for the K3 and K3S?
A: Yes. This dummy load is rated for all 3 of the Transmit Calibration Procedures called for during the building of the K3 and K3S transceivers.
Q: Is the DL1 suitable for use with the KX3 and KX2?
A: Yes. This is a handy, lightweight dummy load designed for QRP radios of all kinds.
